Swivel spreader beam

GD company offers their design of a motor driven swivel spreader beam of 10 t capacity.

connect with us:

Grygorii Gumyniuk

+38 (050) 381-52-70

grigori@gutman.com.ua

">

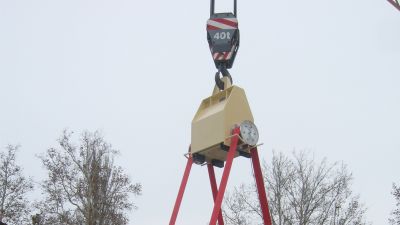

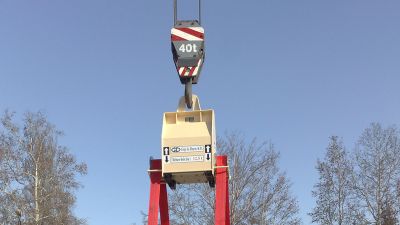

The Turning equipment can be suspended to a crane’s hook construction. The equipment consists of a short lifting beam on whose both ends a polyester strap is led over a drive disc. These are to put beneath the load to be lifted or turned. The straps can be moved by rotating the drive discs and thus the load can be turned. A spur gear drive engine is placed on the lifting beam to rotate the discs.

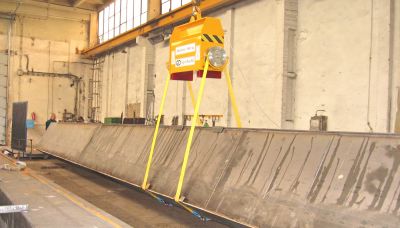

The turning equipment is operated by radio remote control. For turning longer work pieces (e.g. welded crane bridge) both, the motor driven and the free turning beam can be applied together without any problem.
