Mobile hydraulic lifting table

connect with us:

Grygorii Gumyniuk

+38 (050) 381-52-70

grigori@gutman.com.ua

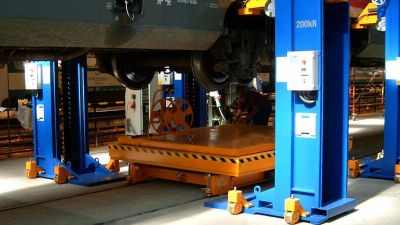

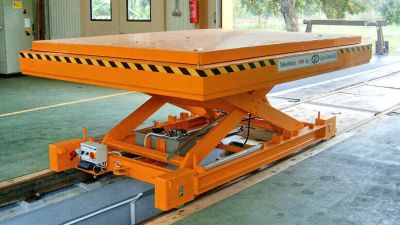

The lifting table is a low construction able to travel on normal railway with motor driven lifting gear and free running carriage. The mobile lifting table can be rolled on the railway beneath the uplifted vehicle; the power packs placed under the bottom of the vehicle can be lowered, and then pulled out for repair.


The new or repaired power pack placed on the lifting table can be rolled back beneath the vehicle where it is lifted to the needed height. The fixing plate on the lifting table which can be turned and moved by ca. +-50 mm by hand makes fine positioning possible.
The power supply of the lifting table is provided by an extension cable coiled on a drum, it is controlled by radio remote control.
